Avacom wifi HD cameras

[OldOneEye]

These are the two cameras I bought last week (for less then $55 each I am impressed so far)
-Avacom H6080AW 1280*720P H.264 Wireless_N Outdoor Weatherproof Day/Night IP Camera(White)
-Avacom H6020W 1280*720P H.264 Wireless_N Indoor Dome Day/Night IP Camera(White)
they are ONVIF Cameras but only if wired, but after a little examination of the path info I found :

Code: Select all

rtsp://192.168.1.241/user=admin_password=R5XFY888_channel=1_stream=0.sdp?real_stream


this is working in my test area
http://www.avacomtech.com/index.html

[Devin]

Hi OldOneEye,

Thanks for sharing the settings! We'll add them to our next update of Sighthound Video.

Regards,

-Devin

[OldOneEye]

I guess I was too fast to say win.
I get a frame of streaks every few seconds, sometime the whole screen sometime just portions. It is from the camera I have verified with VLC that it is in the feed.

Anybody have an idea, before I go to the manufacture for help.

[Devin]

Hi OldOneEye,

This is a problem that can occur when connected to an rtsp stream over UDP. Unlike TCP, UDP has no reliability - packets can be lost resulting in video corruption like you see. We can attempt to force a TCP connection by adding &svforcetcp to the end of the stream path. Here is how it should look with the example you provided:

Code: Select all

rtsp://192.168.1.241/user=admin_password=R5XFY888_channel=1_stream=0.sdp?real_stream&svforcetcp

Regards,

-Devin

[joelataylor]

Hi - I'm trying to get my Avacom H5060W to work with Sighthound and not having too much luck either by ONVIF or RSTP or straight IP/Port settings.

Anyone got some tips?

[joelataylor]

Heard back from Avacom and they said the URL for RSTP is like this:

Code: Select all

rtsp://username:[email protected]:10554/tcp/av0_0

However, I'm not sure how to generate a URL like this in Sighthound - I can't pass validations. Suggestions?

[Devin]

Hi joelataylor,

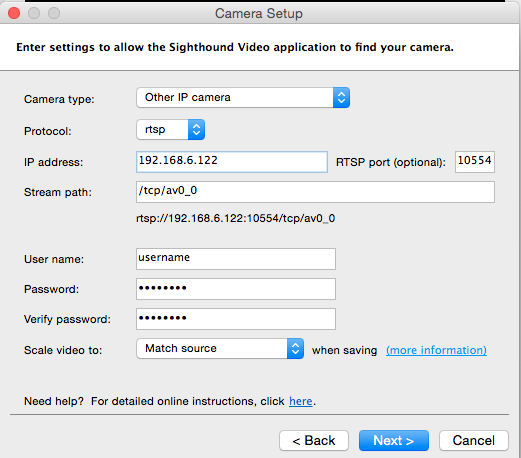

Thanks for sharing the URL. I've attached an image of how this URL should look when entered into the camera setup.

Regards,

-Devin

[joelataylor]

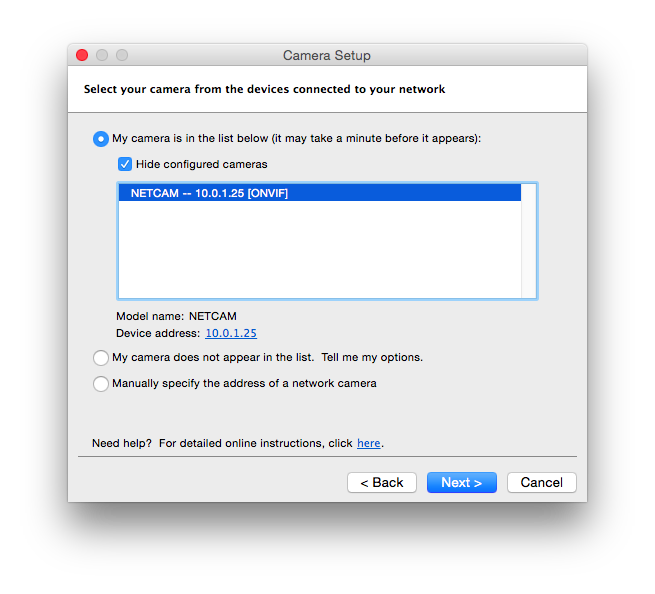

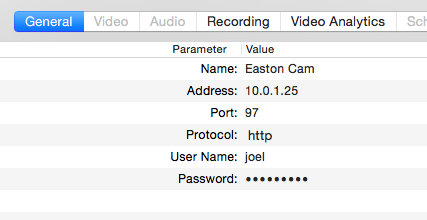

hi Devin, thanks for the response. I had actually tried those settings and it still doesn't work for me. I can actually see the camera using ONVIF but it won't connect using that either.

I've got IP Camera Viewer 2 working. It's using Wanscam IP settings.

So I'm not sure why I'm having so much trouble with Sighthound.

[Devin]

Hi joelataylor,

I've sent you a private message. Please check your Forum inbox.

Regards,

-Devin
