China camera, IPC1100F-W

[nz_cctv]

Looks like a clone of some branded camera judging by the GUI.

Camera is currently live at this url.
rtsp://122.60.14.69:5544/user=guest&pas ... eal_stream

Main stream is &stream=0.sdp?real_stream

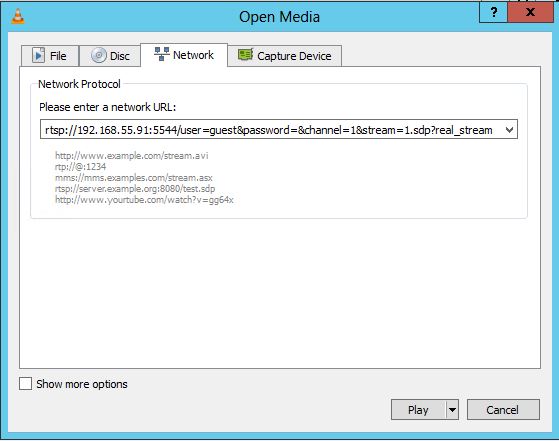

Can open fine in vlc.

Any help appreciated

[Devin]

Hi nz_cctv,

I did a bit of searching and believe the following URL should work with this camera: rtsp://IPADDRESS:8554/live0.264
Protocol: RTSP
Port: 8554
Stream Path: /live0.264

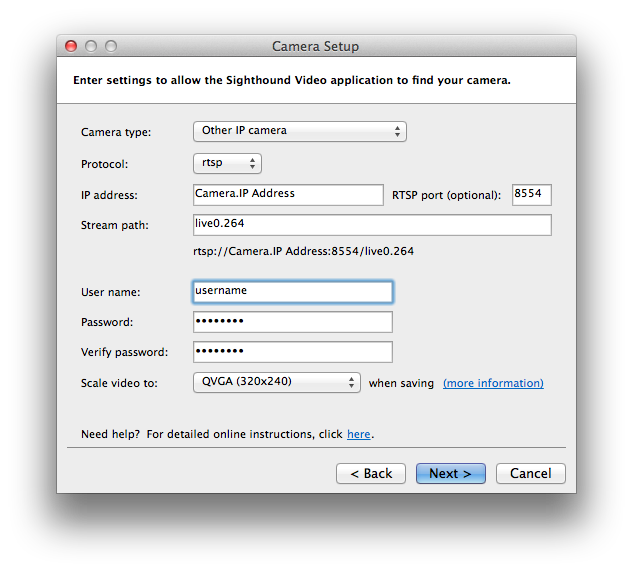

(see attached image)

You should also be able to connect to the URL used in VLC by using:
Protocol: RTSP
Port: 8554
Stream Path: /channel=1&stream=1.sdp?real_stream

As you say, this appears to be a clone and it's fairly difficult to find information on this model. If the above do not work I'll dig a little deeper to find more information.

Regards,
-Devin

[nz_cctv]

No go

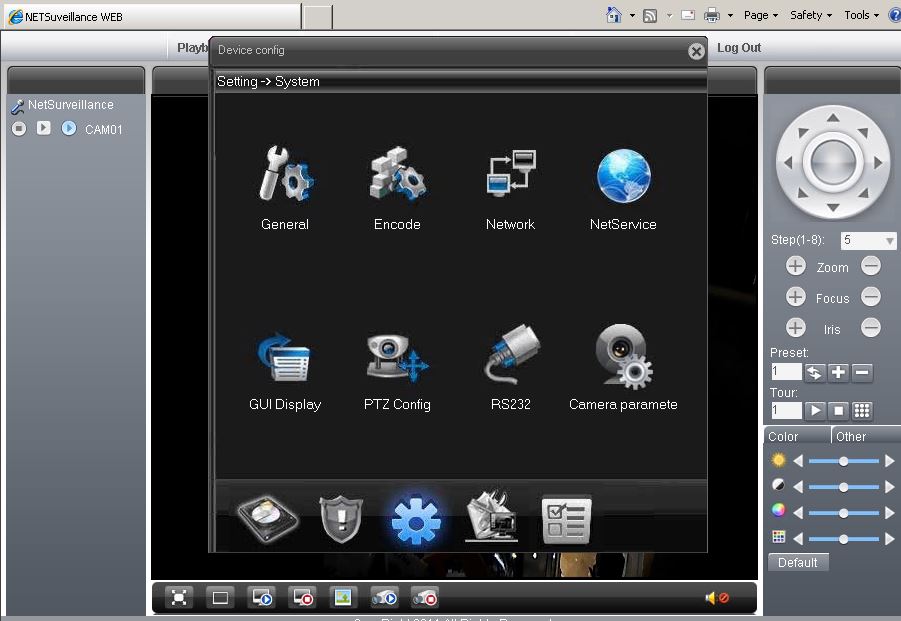

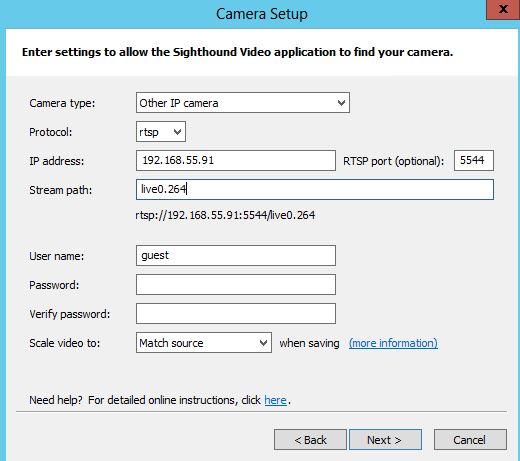

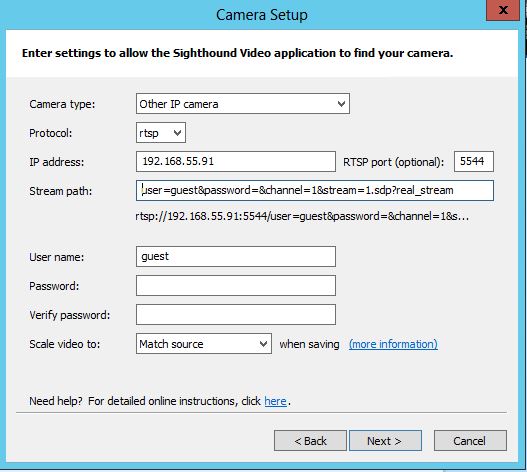

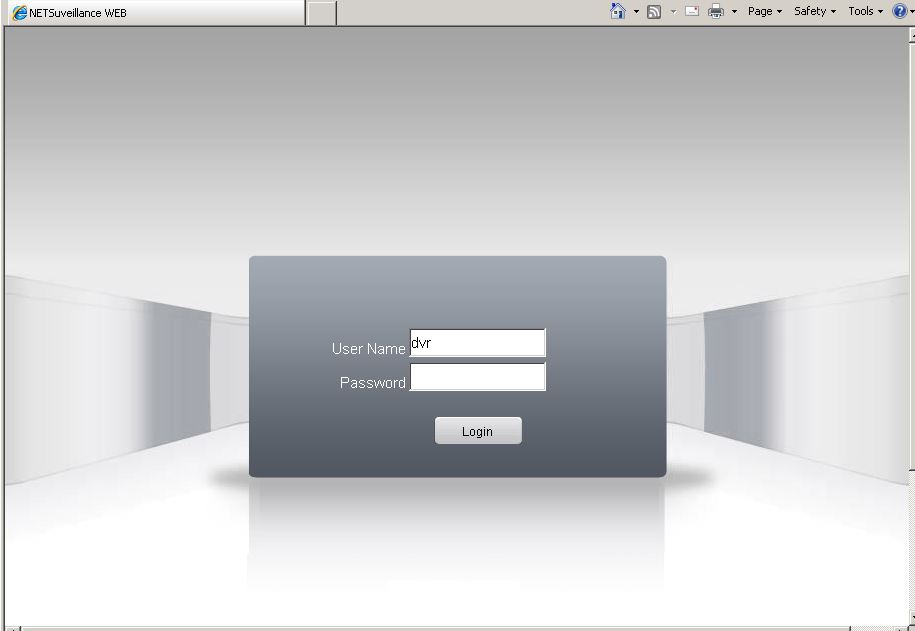

See screen shots attached.
Note the camers is accessible from the internet on "122.60.14.69" so you can test any any potential URLs

There is also a mobile port exposed on 34599.
I will open that on the router too for testing.

Tested working with this mobile app.
https://play.google.com/store/apps/deta ... MEye&hl=en

Could do a network sniff with wireshark if that might help.

[nz_cctv]

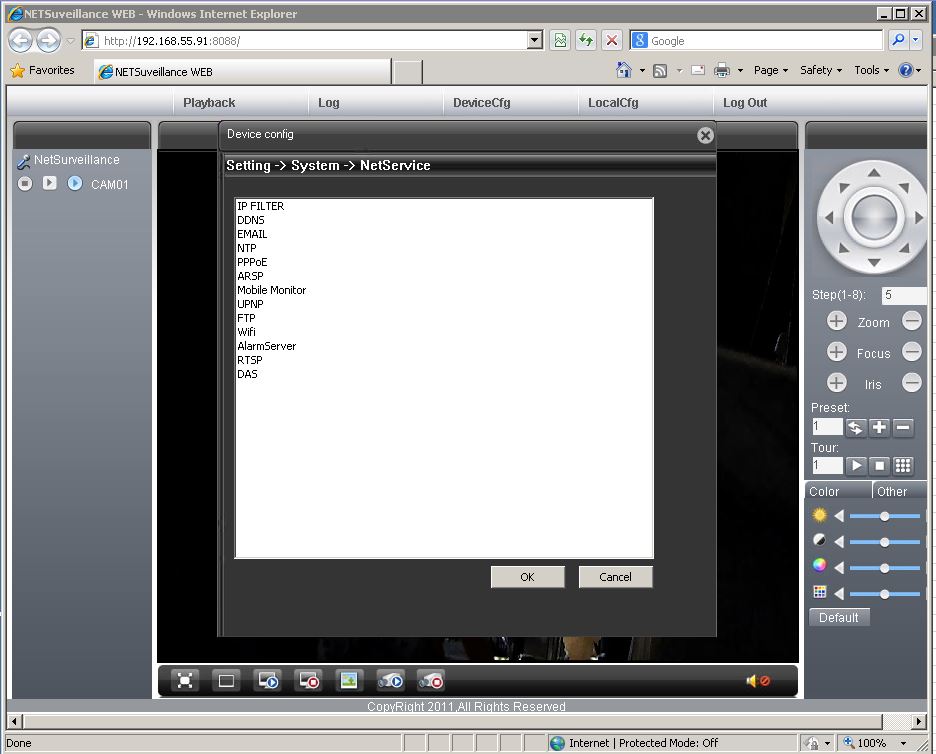

One more screen shot

Looks like this manufacture also uses that same stream address
Love the name lol
http://www.golbong.com/faqs.asp

[nz_cctv]

Getting close
Managed to telnet into it using
root
xc3511

will try and dump the files and poke around.

[nz_cctv]

Strange, that same stream format seems to work on this camera

topic11618/page10.html
